Imagine receiving quotations for three vacuum garment steamers.
The first supplier offers a 2,300Pa model. The second presents a 3,500Pa version. The third places 4,500Pa in large type across its product catalogue.
The immediate conclusion seems obvious:
The model with the highest suction must hold fabric better and remove wrinkles faster.
It may perform better—but the number alone cannot prove it.
Current products already show how differently this category is positioned. Neakasa publishes 2,300Pa suction for the Magic 1 and connects it with automatic fabric gripping and one-handed use. Minfu publishes 4,500Pa stated suction for the MFVS01. Russell Hobbs does not base its VacuSteam positioning on a single Pa figure; it highlights three steam-and-suction settings, 24g steam output and a heated ceramic plate. Rowenta also presents AeroSteam as a combination of suction, heat and steam rather than suction pressure alone.
These products make one point clear: a vacuum garment steamer is not simply a suction motor attached to a steam head.
The final garment result depends on how several systems work together. Suction stabilises the fabric, steam helps relax the fibres, the heated plate provides controlled surface contact, and the user’s movement determines how long the garment receives heat and moisture. Weight, balance, noise and water capacity then influence whether customers can use the product comfortably and consistently.
Higher suction can be useful, but only when the rest of the appliance is designed to make practical use of it.
Readers who need a basic explanation of the technology can first review What Is a Vacuum Garment Steamer?. Buyers building a supplier shortlist can also return to the Top 5 Vacuum Garment Steamer Manufacturers in China for 2026.
What Does the Pa Number Actually Tell You?
The pascal, written as Pa, is the SI unit of pressure. One pascal is equivalent to one newton of force distributed over one square metre.
In a vacuum garment steamer specification, the number normally describes a pressure difference created by the suction system. It can provide useful information about the product’s airflow design, but it does not fully describe what happens when real fabric is placed against the working surface.
A catalogue value does not automatically tell the buyer:
- Where the pressure was measured;
- Whether the inlet was open or sealed;
- Whether fabric covered the plate;
- Whether the value is a short peak or a stable operating level;
- How large the suction area is;
- How much air moves through the product;
- How much air escapes around the fabric;
- How the pressure changes while the product is moving;
- How much noise and heat the motor generates;
- Whether the result remains stable after several minutes.
Consider two simplified products.
Product A creates a high pressure reading through a small, concentrated inlet. It may grip one section firmly, but the narrow working area could require many short passes.
Product B publishes a lower peak pressure but distributes airflow across a wider section of the plate. Its maximum number may be smaller, yet it could hold the fabric more evenly and move more naturally across the garment.
The first product may win a specification comparison. The second may provide the better user experience.
This does not mean Pa is meaningless. It means Pa should be treated as one engineering measurement—not a final wrinkle-removal score.
The Real Result Is Created at the Fabric Contact Area
Importers are not purchasing a pressure reading. They are purchasing a repeatable result on clothing.
For suction to improve that result, it must create useful tension where steam and heat meet the garment. The fabric should be held close enough to remain stable, but the appliance should still move smoothly.
If the airflow is concentrated in the wrong area, thin fabric may bunch near the inlet. If the plate is too narrow, the user may need many overlapping strokes. If air leaks around seams, pockets or buttons, the maximum pressure measured in a laboratory may not represent normal operation.
The better sourcing question is therefore not:
How much suction does the motor produce?
It is:
How effectively does the complete appliance hold the fabric while steam and heat work on the wrinkles?
More suction may improve fabric holding, but it can also create practical trade-offs:
- Greater resistance while moving the product;
- Uneven pulling on thin material;
- Higher fan noise;
- Additional heat inside the housing;
- A larger motor or airflow channel;
- Increased power consumption;
- More weight in the user’s hand.
The highest setting is therefore not automatically the best setting for every garment.
Russell Hobbs currently provides three combined steam-and-suction settings on its VacuSteam model, illustrating that a product can be designed around several operating levels rather than one fixed maximum.
A successful product needs to find a usable balance between holding force and movement. The garment should remain stable without making the steamer feel stuck to the fabric.
Why the Same Suction Can Behave Differently on Different Fabrics
The fabric itself becomes part of the suction system.
A tightly woven shirt may restrict air passing through the material and allow the appliance to create stronger local tension. An open knit or highly porous textile may allow more air to pass through, reducing the holding effect even when the motor remains at the same setting.
Garment construction can be just as important as fibre composition.
A flat shirt panel creates a relatively even contact surface. A pocket, button, seam, embroidered area or layered cuff creates gaps that allow air to enter. The product may hold the centre of a shirt effectively and behave very differently when it reaches the placket or collar.
This is why a demonstration on one smooth sheet of polyester cannot represent ordinary customer use.
A meaningful B2B sample test should include several materials and garment structures.
| Test material or garment area | What it helps reveal |
|---|---|
| Tightly woven cotton | General holding and everyday shirt performance |
| Linen or linen blend | Performance on deeper and more persistent wrinkles |
| Polyester | Heat control, surface glide and moisture marks |
| Thin synthetic fabric | Whether suction pulls or distorts the material |
| Open-knit material | Performance when air passes through more freely |
| Pocket and button area | Behaviour when contact is interrupted |
| Collar and cuff | Plate access and structured-area performance |
| Lower hem | Whether one-handed control remains practical |
The aim is not to prove that the appliance produces an identical result everywhere.
The aim is to understand whether its behaviour remains predictable as the fabric changes.
A supplier that explains where suction becomes weaker may be more useful than one claiming the maximum setting performs perfectly on every textile.
Suction Cannot Remove Wrinkles by Itself
Suction creates support, but it does not relax fabric fibres on its own.
That work still depends on steam, surface temperature and contact time.
A product with strong suction but weak or uneven steam may hold a wrinkle firmly without releasing it effectively. A product with high steam output but poor water control may leave visible droplets. A heated plate with unstable temperature may deliver inconsistent results or create unnecessary risk on sensitive materials.
This is why established suction-steamer brands describe the technology as a combination.
Rowenta states that AeroSteam draws fabric toward a heated soleplate while applying steam. Russell Hobbs combines its VacuSteam system with a ceramic press plate and publishes a 24g steam output powered by a 1,500W system.
For a sourcing project, the buyer should examine the systems together.
| System | Practical question |
|---|---|
| Suction | Does the fabric remain stable during a normal stroke? |
| Airflow | Is the holding force distributed across a useful area? |
| Steam output | Does steam remain continuous after heat-up? |
| Steam distribution | Does the full working surface receive steam? |
| Plate temperature | Is the temperature even and repeatable? |
| Water control | Are droplets visible during startup or rotation? |
| Movement | How slowly must the operator move to get a result? |
| Recovery | Does steam recover quickly after repeated use? |
| Continuous use | Do suction and temperature remain stable over several garments? |
The final result depends on the weakest part of this system.
A strong motor cannot compensate for poor steam distribution. A large plate cannot compensate for uncomfortable product weight. Fast heat-up cannot compensate for a water tank that leaks when the head is rotated.
A Fair Comparison Begins Before the Product Is Switched On
Supplier demonstrations often appear convincing because the test conditions are not controlled.
One sample receives a lightly wrinkled polyester shirt, while another receives thick linen. One operator moves slowly and carefully, while another moves much faster. One garment has been slightly dampened, while another is completely dry.
The products may be different, but the testing conditions are also different. The result cannot be compared fairly.
A more useful B2B test begins with identical garment preparation.
Prepare Comparable Samples
Each product should receive the same garment type, fabric composition, size and wrinkle condition.
A practical factory or buyer test can use several identical shirts that are washed or dampened in the same way, folded under the same pressure and left for the same period. The garments should then be conditioned in the same room before testing.
This is not intended to create an international laboratory standard. It simply removes obvious inconsistencies from the comparison.
Control the Operating Method
Use the same:
- Water type and filling level;
- Heat-up procedure;
- Steam and suction mode;
- Starting position;
- Movement speed;
- Number of passes;
- Test operator;
- Room temperature and humidity;
- Lighting and camera position.
Where possible, mount the product on a movement rig that controls speed and contact angle. During early supplier screening, a trained operator following marked movement guides may be sufficient.
Record the Starting Condition
Photograph every garment before testing under fixed lighting.
The final result can then be reviewed by several people who do not know which product treated which garment. This reduces the chance that a familiar brand or larger suction number influences the visual judgment.
Measure the Process as Well as the Photograph
The final garment matters, but the buyer should also record what was required to achieve it:
- Heat-up time;
- Total treatment time;
- Number of passes;
- Suction stability;
- Steam consistency;
- Surface temperature;
- Remaining moisture;
- Noise;
- Product weight;
- Movement resistance;
- Handle temperature;
- Performance after continuous use.
A product that produces a marginally smoother photograph but takes twice as long may not be the best commercial option.

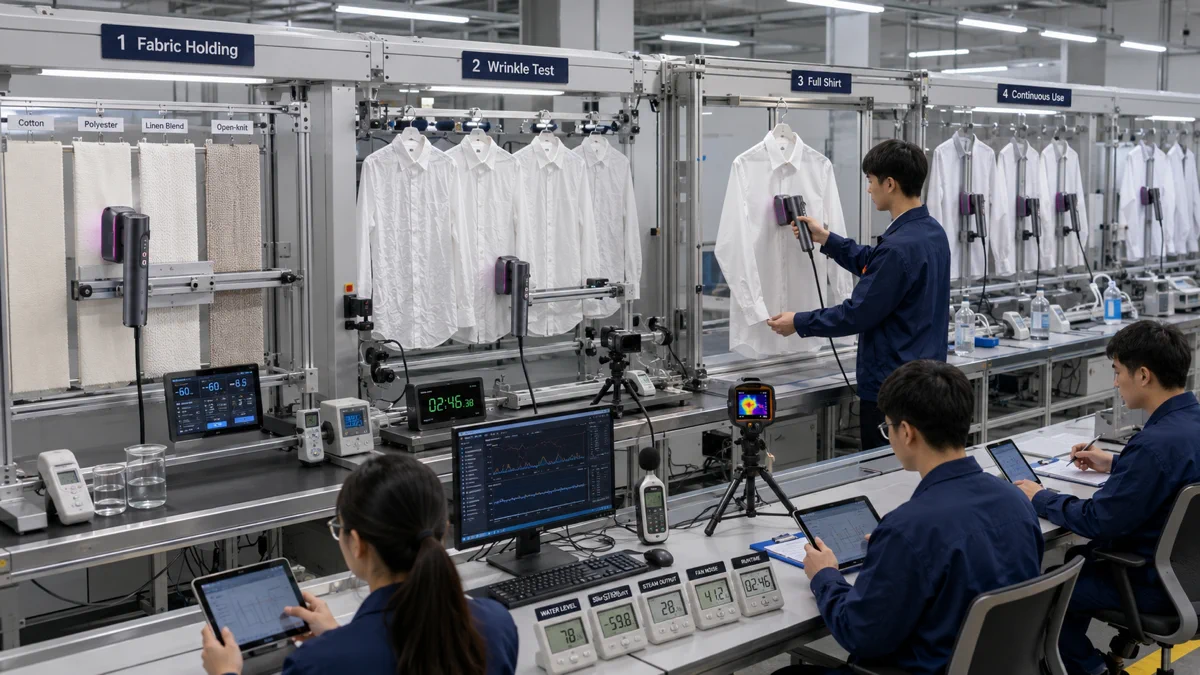

A Practical Four-Stage B2B Test
The following process is a procurement framework rather than a formal certification procedure.
Stage 1: Fabric-Holding Test
Begin by testing the suction system without immediately judging wrinkle removal.
Move the product across flat cotton, polyester, linen blend and a more porous textile. Observe whether the garment remains stable, whether it gathers around the air inlet and how much effort is required to move the steamer.
Pay particular attention to:
- Initial contact;
- Normal vertical movement;
- Fabric edges;
- Seams and buttons;
- Low and high suction modes;
- Performance when the machine is cold;
- Performance after it has warmed up.
The objective is to understand whether the suction is useful—not merely noticeable.
Stage 2: Controlled Wrinkle Test
Prepare identical wrinkle areas and operate every sample for the same length of time.
Photograph the result immediately after treatment and again after the garment has cooled and dried. A damp garment can temporarily appear flatter, so the later photograph provides a more reliable indication of the retained result.
Stage 3: Complete Shirt Test
Ask the same operator to prepare a complete shirt under normal working conditions.
Record:
- Total task time;
- Number of tank refills;
- Areas requiring the second hand;
- Collar and cuff performance;
- Product comfort near the end;
- Sections that remain difficult.
This stage often identifies problems that a small fabric panel cannot show. The product may feel heavier over time, the power cord may restrict movement, the water tank may empty too quickly or the steaming head may struggle to reach beneath a collar.
Stage 4: Continuous-Use Test
Operate the product over several garments or for a defined continuous period.
Observe whether there are changes in:
- Suction pressure;
- Airflow;
- Steam output;
- Plate temperature;
- Housing temperature;
- Fan tone;
- Vibration;
- Water leakage.
A stable commercial product should perform beyond a brief showroom demonstration.
Score the Complete Garment-Care Experience
A useful procurement scorecard should give the finished garment the greatest weight while also accounting for usability and stability.
The following 100-point structure can be adapted according to the target market:
| Evaluation area | Suggested weight |
|---|---|
| Wrinkle reduction after cooling | 25 |
| Fabric-holding stability | 15 |
| Total task time | 10 |
| Steam distribution and consistency | 10 |
| Water and drip control | 10 |
| Seams and structured areas | 8 |
| Handling, glide and balance | 8 |
| Noise and vibration | 6 |
| Continuous-use stability | 5 |
| Refilling, cleaning and storage | 3 |
| Total | 100 |
The published suction value does not need a separate large score.
Instead, suction influences the results customers actually experience:
- Holding stability;
- Movement resistance;
- Task time;
- Noise;
- Continuous performance;
- Final wrinkle reduction.
This prevents the supplier with the largest catalogue number from automatically receiving the highest ranking.
It also creates a more useful conclusion for the purchasing team:
Product A published the highest suction, but Product B treated the shirt faster, moved more smoothly and produced a more even result with less noise.
That statement supports a purchasing decision far better than:
Product A has 1,000Pa more suction.
What to Ask a Supplier About Its Suction Figure
When a manufacturer publishes a Pa value, buyers should request the basic measurement conditions.
Useful questions include:
- Where is the pressure measured?
- Is the air inlet sealed during testing?
- Is the published value a maximum peak or normal operating level?
- Is fabric placed against the working surface?
- Which fabric is used?
- What is the measured contact area?
- Is airflow data available as well as pressure?
- How does pressure change near the edge of the plate?
- How many suction modes are available?
- What is the noise level in each mode?
- Is the product tested cold or after warming up?
- Does suction change after continuous operation?
- Are the same motor and air-duct components used in mass production?
- Can the factory provide a video or raw test record?
- Is the suction value included in the approved specification sheet?
The supplier does not need to provide an unnecessarily complicated scientific report.
The buyer simply needs enough information to determine whether two reported values were measured under comparable conditions.
A maximum pressure measured with a completely blocked opening should not be compared directly with an operating value measured while air passes through fabric.
Where the MFVS01 Fits
The Minfu MFVS01 is currently published with 4,500Pa stated suction, approximately 25-second heat-up, an 85ml water tank, a product weight of approximately 800–850g and dimensions of 194 × 90 × 173mm. Minfu also lists 110V and 220V configurations, regional plugs, customised colours, packaging and manuals.
On paper, 4,500Pa gives the product a strong suction-focused message. Its weight and compact water tank indicate that the platform is positioned more toward quick garment preparation and relatively lightweight board-free use than long, uninterrupted steaming sessions.
That positioning should determine how the sample is tested.
For MFVS01, buyers should examine:
- Whether the stated suction remains stable during normal movement;
- Whether fabric is held evenly across the useful plate area;
- Whether maximum suction creates too much movement resistance;
- Performance on porous, thin and delicate textiles;
- Fan noise during extended operation;
- Steam consistency from the 85ml water tank;
- Approximate garments per fill;
- Handle and housing temperature;
- Balance as the water tank empties.
The objective is not to prove that 4,500Pa is universally better than 2,300Pa or 3,500Pa.
The objective is to demonstrate what the complete MFVS01 system achieves under repeatable conditions.
A credible product description could therefore say:
The 4,500Pa stated suction system helps draw suitable fabrics toward the heated soleplate for more controlled board-free steaming.
That statement explains the product benefit without suggesting that suction alone guarantees a perfect result on every garment.
Turn Test Results into Credible Product Claims
Testing should not end when the purchasing team chooses a sample. The results should also guide the wording placed on packaging, product pages and sales materials.
A high suction figure alone does not support statements such as:
Perfect results on every fabric.
or:
Every wrinkle removed in one pass.
Those outcomes also depend on wrinkle depth, fabric construction, steam output, plate temperature, movement speed and the test method.
A more credible message explains what the suction system contributes without promising identical results in every situation:
Suction-assisted fabric holding helps keep suitable garments stable while steam and heat work on wrinkles.
For MFVS01, project-specific wording could be:
The 4,500Pa stated suction system supports more controlled vertical steaming by drawing suitable fabrics toward the heated soleplate.
The technical number can still appear prominently in product specifications, but the consumer-facing explanation should focus on what the feature changes during normal use.
Claims involving precise comparisons or guaranteed results—such as “three times deeper steam penetration,” “removes every wrinkle in one pass” or “completely replaces a traditional iron”—should only be used when the approved production model has been tested under clearly defined and repeatable conditions.
For private-label buyers, this is not only a matter of cautious wording. Accurate claims help set realistic customer expectations, simplify distributor training and reduce avoidable returns or after-sales disputes.
What Is the Buyer Really Choosing?
A suction figure creates a clean comparison, but the real product decision is more complicated.
The buyer is choosing between different combinations of:
- Fabric-holding strength;
- Steam output;
- Contact area;
- Water capacity;
- Product weight;
- Noise;
- Movement resistance;
- Heat-up time;
- Packaging size;
- Manufacturing cost;
- Retail positioning.
A stronger suction system may suit a premium home garment-care product. A lower level may be sufficient for a lightweight travel-oriented model. Multiple settings may offer a better compromise when the same appliance must handle delicate fabrics and heavier shirts.
The article Vacuum Garment Steamer vs Traditional Steamer vs Steam Iron explains how these trade-offs influence target customers and sales channels.
The next sourcing step is not to ask every manufacturer for the highest possible Pa number.
It is to provide every candidate with the same garments, wrinkle preparation and test brief, then compare what their complete products actually achieve.
Conclusion: Higher Suction Can Help, but It Is Not the Finish Line
Higher suction can improve a vacuum garment steamer’s ability to hold fabric against the working surface.
That can create more useful tension, reduce movement and allow steam and heat to act on a more stable area.
The benefit is only realised when:
- Airflow is distributed effectively;
- The contact area is useful;
- Steam remains consistent;
- Plate temperature is controlled;
- The product moves comfortably;
- Noise is acceptable;
- Performance remains stable;
- The fabric suits the selected operating mode.
A large Pa value is therefore not irrelevant. It is simply incomplete.
For B2B buyers, the strongest comparison begins with identical garments and ends with a complete record of wrinkle reduction, total task time, moisture, noise, handling and continuous performance.
The best vacuum garment steamer is not automatically the one with the largest suction number.
It is the one that converts its suction, steam and heated contact into a repeatable, comfortable and commercially credible garment-care result.
To compare Chinese manufacturing candidates, return to the Top 5 Vacuum Garment Steamer Manufacturers in China for 2026.
For MFVS01 samples, suction testing or private-label project evaluation, contact the Minfu team with the target market, fabric priorities, voltage requirements and expected sales channel.
