kPa vs Air Watts vs CFM: Which Vacuum Suction Spec Should Buyers Trust?

Put three cordless vacuum specification sheets side by side and you may see three completely different ways of describing suction.

One supplier says:

30kPa

Another says:

150 Air Watts

A third talks about:

CFM airflow

At first glance, it looks as though these numbers should be directly comparable.

They are not.

This causes a lot of confusion when we discuss cordless vacuum projects with buyers. A larger kPa number can look impressive on a carton, but kPa measures something different from airflow. Air Watts combines pressure and airflow, but even that number is only meaningful when we know how and where it was measured.

So when we evaluate vacuum suction power at Minfu, we do not start by asking which specification is biggest.

We start with a simpler question:

What exactly was measured?

That question usually tells us far more than the number itself.

1. kPa Measures Pressure, Not Complete Cleaning Performance

Most Chinese cordless vacuum specification sheets use Pa or kPa.

The relationship is simple:

1 kPa = 1,000 Pa

So:

25kPa = 25,000Pa
30kPa = 30,000Pa

What that number describes is a pressure difference.

In practical vacuum terms, it tells us how strongly the machine can create negative pressure at a defined measurement point.

That matters.

A vacuum needs enough pressure to pull particles from crevices, carpet fibers and restricted airflow paths.

The mistake is turning that number into a complete cleaning score.

Imagine a vacuum connected to a perfectly sealed opening.

As the opening becomes more restricted, the system can develop strong negative pressure.

But very little air may actually be moving.

That vacuum can produce an impressive pressure reading without telling us how effectively the complete cleaner head will move dust and debris during normal use.

This is why a specification such as:

Maximum suction: 30kPa

is useful information.

It just does not answer every performance question.

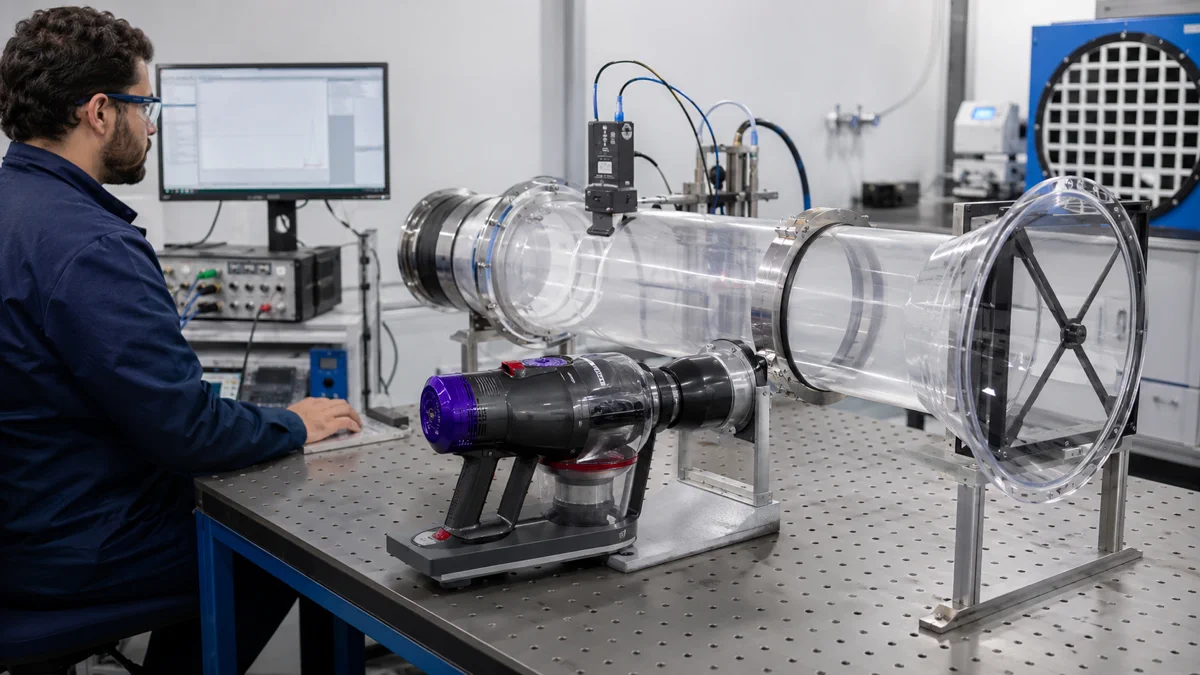

2. CFM Measures How Much Air Is Moving

CFM means cubic feet per minute.

Instead of measuring pressure, it measures air volume.

In simple terms:

kPa tells us how strongly the vacuum can pull.

CFM tells us how much air is actually moving through the system.

Those two characteristics behave differently.

A relatively open airflow path may move a large volume of air while developing less static pressure.

A highly restricted system may develop strong pressure while moving less air.

That is why we do not like comparing two vacuums simply by asking:

Which one has the bigger suction number?

The airflow path matters too.

Think about larger lightweight debris on a hard floor.

Moving that material effectively depends not only on pressure but also on a useful stream of air reaching the cleaning head.

Now think about fine dust embedded deeper inside carpet.

The balance between pressure, airflow, brush agitation and sealing changes again.

One specification cannot describe every part of that process.

3. Air Watts Try to Combine Pressure and Airflow

Air Watts are often easier to understand because they represent air power rather than pressure alone.

Dyson, for example, explains the difference in similar terms: Pascals measure pressure difference, while Air Watts account for both pressure and airflow.

That makes Air Watts useful when comparing vacuum systems.

But there is an important detail buyers should understand:

you cannot calculate a meaningful Air Watt figure by simply multiplying a vacuum’s maximum sealed kPa by its maximum free airflow.

Those two maximum values normally occur under different airflow conditions.

At completely blocked flow, pressure may be at or near its maximum while airflow approaches zero.

At a completely open inlet, airflow may be near maximum while pressure difference falls.

The meaningful air-power value comes from pressure and airflow at the same operating point.

This is where some online vacuum comparisons become misleading.

4. Be Careful With Air Watt Formulas Online

There is a lot of incorrect conversion information online.

At the engineering level, air power follows a straightforward relationship:

Air Power = Pressure × Volumetric Airflow

When pressure is expressed in Pascals and airflow in cubic metres per second, the result is watts.

If someone wants to work directly with kPa and CFM, the approximate conversion is:

Air Watts ≈ kPa × CFM × 0.472

There is another common formula:

Air Watts ≈ CFM × inches of water lift ÷ 8.5

The important detail is that this second formula uses inches of water lift, not kPa.

Mixing kPa into the /8.5 formula produces the wrong result.

For sourcing, however, we would not recommend turning the quotation process into a mathematics exercise.

There is an easier approach:

ask the supplier how each number was measured.

5. The Measurement Point Can Change the Result

This is one of the questions we think buyers should ask more often.

Where was the suction measured?

Possible answers could include:

• near the motor;
• at the vacuum body inlet;
• at the end of the extension tube;
• at the cleaner head;
• or on a laboratory airflow rig.

Those positions are not equivalent.

Every additional part between the motor and floor introduces something into the airflow path:

seals, bends, filters, cyclones, tubes, joints and cleaner-head geometry.

Each can introduce resistance or leakage.

So a motor assembly can perform very well by itself while the complete vacuum delivers a noticeably different result at floor level.

When we are comparing engineering samples, the measurement location therefore matters almost as much as the headline number.

A useful question is not:

Is this 30kPa?

It is:

Where is the 30kPa measured, under what condition, and can the result be repeated?

6. Peak Suction and Sustained Suction Are Also Different

Cordless products introduce another variable: battery power.

A vacuum may reach an impressive maximum reading in its highest mode.

That does not necessarily mean it maintains the same performance through an entire cleaning session.

Battery state, motor control, temperature protection and filter condition can all influence sustained operation.

This matters commercially because the customer does not clean a floor for three seconds.

If Max mode produces a strong specification but the machine becomes too noisy, too hot or runs for only a short period, buyers still need to decide whether that operating mode makes sense for their target market.

We prefer to evaluate at least two things:

maximum performance

and

normal-use performance

For a cordless vacuum intended for everyday household use, the second can be more important to customer satisfaction.

7. Filter Loading Changes the Story Again

A brand-new clean filter gives a vacuum the easiest possible airflow condition.

Real customers do not operate like that forever.

Dust begins accumulating.

Fine particles enter the filtration system.

Hair and debris move through the cleaner head.

Airflow resistance changes.

This is why one of the more useful comparisons is not simply:

Machine A vs Machine B when both are completely clean.

We also want to know how well the airflow system behaves after some realistic loading.

A poorly designed filtration path may produce an impressive initial suction reading but lose usable airflow relatively quickly as dust accumulates.

A well-designed cyclone and filtration system can help protect airflow before dust reaches the final filter.

For buyers, that affects much more than laboratory performance.

It affects:

• customer perception;
• filter-cleaning frequency;
• maintenance;
• motor load;
• and potentially return rates.

So when we evaluate a cordless vacuum manufacturer, we want to understand the entire airflow system rather than only the motor specification.

8. Cleaner Head Design Can Make a Lower Number Clean Better

This is where specification sheets meet the floor.

Imagine two cordless stick vacuums.

Machine A has the higher kPa figure.

Machine B has a slightly lower pressure figure but a better-sealed floor head, stronger brush agitation and a more efficient airflow path.

Which one removes more dust from carpet?

You cannot reliably answer that from kPa alone.

The cleaner head changes how the vacuum interacts with the surface.

Things such as:

• brush-roll speed;
• bristle geometry;
• floor-head sealing;
• intake width;
• edge leakage;
• carpet contact;
• and debris channel shape

all influence pickup.

This is why we think buyers eventually need to move beyond specifications and test complete machines.

The current IEC 62885-2:2026 standard is useful in this context. It now covers performance measurement for both mains-operated and cordless household dry vacuum cleaners and specifically notes that comparative tests are more reliable when products are evaluated under the same conditions, in the same laboratory and by the same operator.

That is very close to the approach we recommend for OEM sample evaluation:

same test, same surface, same debris, same operating mode.

9. So Which Number Should a Buyer Trust?

There is no single answer that works in every situation.

Here is how we would read the three specifications.

If we had to choose between only a kPa number and properly measured Air Watts, Air Watts generally tells us more about the airflow system because pressure and flow are both involved.

But we still would not approve an OEM vacuum from Air Watts alone.

A good vacuum is a system.

That system includes:

motor + fan + cyclone + filter + seals + tube + cleaner head + brush + battery + control strategy.

Changing any of those can alter the cleaning result.

10. What We Would Ask a Supplier to Show

For a B2B buyer, we would keep this practical.

Instead of asking suppliers to fill a spreadsheet with every possible number, ask for enough evidence to understand the claim.

For example:

What is the maximum suction pressure?

Then:

Where is that value measured?

Then:

Is it a peak value or stable operating value?

If airflow or Air Watts are supplied:

What measurement point and test condition are used?

And finally:

Can we compare two samples under the same pickup test?

Those questions are much harder to answer with marketing language alone.

They force the conversation toward something repeatable.

11. What We Would Actually Test on a Cordless Vacuum Sample

We would not make this overly complicated.

Start with a clean machine and a fully charged battery.

Record the supplier’s stated suction mode.

Then use repeatable debris.

For a hard-floor test, that might include a controlled quantity of:

• fine dust;
• rice;
• cereal-sized particles;
• hair.

For carpet, use the same defined section of carpet and the same amount of test debris.

Run the same number of passes.

Then inspect what remains.

After that, repeat part of the test after the dustbin and filtration system have accumulated some realistic load.

Now the specification sheet becomes much more useful because we can ask:

Does this pressure and airflow system actually produce the pickup result we expected?

That is the question the end customer ultimately answers with their floor.

12. How We Look at Minfu Cordless Vacuum Platforms

Our current cordless vacuum range includes platforms designed for different positioning rather than one single suction target.

For example, the S17 self-emptying cordless stick vacuum is currently specified at up to 25kPa, with a self-emptying base, brushless motor and cyclone filtration.

Those specifications help define the product.

But if a buyer is evaluating S17 for a private-label project, we would still want them to test the complete machine.

The 25kPa number should lead to questions such as:

Does it pick up the debris expected in the target market?

How does performance change between modes?

What happens as the filter loads?

Does the floor head maintain useful pickup on both hard floor and carpet?

How much runtime does the customer sacrifice in maximum mode?

Those questions are much more useful than trying to make the largest suction number the whole product strategy.

Our earlier article Does Higher Suction Mean Better Cleaning in a Wet Dry Vacuum? makes a similar point from the floor-washer side: a headline Pa number matters only in the context of the complete cleaning system.

Dry cordless vacuums use a different architecture, but the principle still applies.

13. Specification Consistency Matters in OEM Production

There is one more reason B2B buyers should care about how suction is achieved.

Once the sample is approved, the production units need to reproduce it.

A change in:

• motor;
• battery;
• PCB control;
• filter material;
• seal;
• or cleaner-head component

can influence the airflow system.

This is where our recent OEM BOM approval discussion becomes relevant.

If a brand approved a vacuum based on a particular performance result, critical component substitutions should not quietly change the product later.

The question is not simply whether the replacement motor has the same wattage printed on its specification sheet.

The question is whether the finished vacuum still delivers the approved result.

That is the level at which engineering specifications become production quality.

14. Do Not Confuse Motor Watts With Air Watts

This is another easy mistake.

A vacuum may say:

300W motor

and another may say:

150 Air Watts

These are not the same measurement.

Motor input power tells us how much electrical power the motor system consumes or is rated to use.

Air Watts describe useful aerodynamic power in the moving air.

Some of the electrical energy becomes heat, sound and mechanical loss rather than usable suction.

So:

300W motor ≠ 300 Air Watts

They should never be compared as though they are interchangeable.

A more efficient aerodynamic system may produce a better usable cleaning result without simply increasing motor input.

For cordless products, this also matters because motor demand connects directly to battery size, runtime, heat and product weight.

That trade-off deserves its own article, particularly because cordless vacuum battery runtime is often misunderstood in exactly the same way suction is: buyers see one mAh number and assume it tells the whole story.

15. Our View: Use the Numbers to Decide What to Test

We are not arguing that vacuum specifications are useless.

Quite the opposite.

They help us understand the engineering direction of the product.

kPa tells us about pressure.

CFM tells us about airflow.

Air Watts give us a more complete view of aerodynamic power.

Motor wattage tells us something else again.

The mistake is asking one number to do the job of all the others.

When we work with buyers on a cordless vacuum project, our preferred sequence is simple:

Read the specification.

Then ask how it was measured.

Then test the finished product under conditions that matter to the target market.

If two samples both claim strong suction, put them on the same floor.

Use the same debris.

Use the same operating mode.

Run the same number of passes.

The specification sheet tells us what we expect to happen.

The floor tells us what actually happened.

For an OEM buyer, we think both answers matter.

FAQ

What is the difference between kPa and Air Watts in a vacuum?

kPa measures pressure difference, while Air Watts represent aerodynamic power using both pressure and airflow. Air Watts therefore provide more information about the airflow system than pressure alone, although neither metric replaces real cleaning-performance testing.

Is 30kPa suction better than 25kPa?

Not automatically. If both numbers were measured under the same conditions, the 30kPa machine produces greater maximum pressure. Actual pickup can still depend on airflow, floor-head design, brush performance, sealing and filtration.

What does CFM mean on a vacuum cleaner?

CFM means cubic feet per minute and measures airflow volume. It describes how much air moves through the vacuum system rather than how much static pressure the system can generate.

Are motor watts the same as Air Watts?

No. Motor wattage describes electrical input or rated motor power. Air Watts describe aerodynamic power delivered through airflow and pressure. The two numbers are not directly interchangeable.

Can Air Watts be calculated from kPa and CFM?

Yes, if the pressure and airflow are measured at the same operating condition. Using kPa and CFM, approximate air power is kPa × CFM × 0.472. Simply multiplying separate maximum-pressure and maximum-airflow figures can produce a misleading result.

Which vacuum suction specification should OEM buyers use?

We recommend using specifications to define the expected product, then validating complete-machine pickup under repeatable conditions. For supplier comparisons, the measurement method and test point should be consistent.

Work With Minfu

Looking for a reliable manufacturing partner for your next smart cleaning appliance project?

Minfu provides one-stop OEM/ODM manufacturing, product development, customization, quality control and mass-production support for brands, importers, distributors and retailers worldwide.

Website: minfutech.com
OEM/ODM Solutions: /oem-odm-solutions/
Email: info@minfutech.com
WhatsApp / Phone: +86 13760255781
Contact: /contact-minfu/

Contact Minfu to discuss your product requirements, samples and OEM/ODM cooperation.
